Disconnecting Ball Joint

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

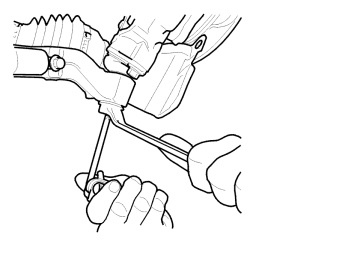

Fig 1: Removing Nut On Ball Joint Using A Torx Wrench As A Counter Hold

GLL105494

Courtesy of VOLVO CARS OF NORTH AMERICA.

For vehicles with aluminum control arms:

Remove the nut on the ball joint. Use a Torx wrench as a counterhold.

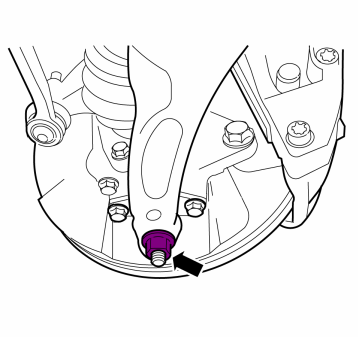

Fig 2: Ball Joint Nut

GLL162960

Courtesy of VOLVO CARS OF NORTH AMERICA.

For vehicles with steel control arms:

Remove the nut from the ball joint.

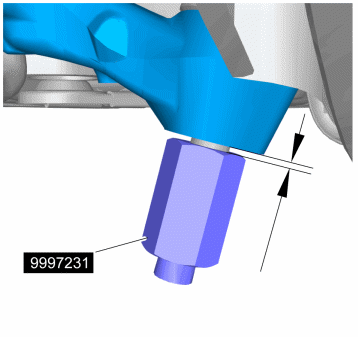

Fig 3: Identifying Nut 999 7231 Installed On Ball Joint And Proper Clearance To Link Arm

GLL157201

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the nut on the ball joint with a clearance to the control arm of 1.5 mm.

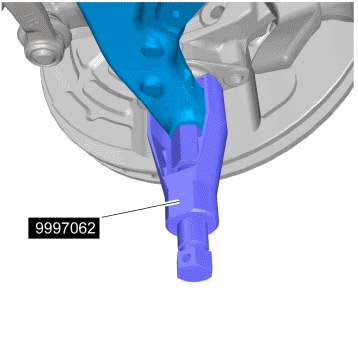

Fig 4: Identifying Puller 999 7062 Aligned With Link Arm And Nut 999 7231

GLL160292

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the puller with the control arm and nut.

Tighten the puller so that the ball joint releases from the control arm.
