Installing The Rear Bushing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Bushing Pressed In To 40 mm

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Note that the bushing's inner sleeve is longer on one side. This side must point upwards.

Press in the bushing to the specified dimension (40 mm), measured between the control arm's machined surface and the bushing's inner sleeve.

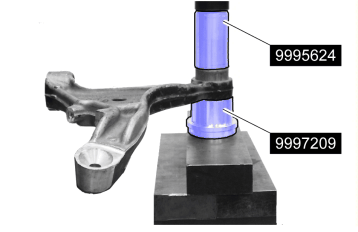

Fig 2: Bushing In Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the bushing in the control arm as above.
Use tool 9995624 and 9997209
Press in the bushing to the above given position.
