Installing The Front Bushing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Ensuring That Bushing Is Correctly Positioned In Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Ensure that the bushing is correctly positioned in the control arm.

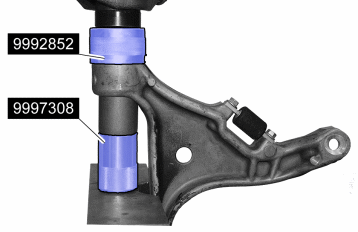

Fig 2: Identifying Bushing Pressed In Until Outer Sleeve Contacts Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the bushing with the control arm as above.
Press in the bushing. Use tool 9992852 and 9997308
Press the bushing in until the outer sleeve of the bushing contacts the tool 9992852
