Removing The Ball Joint Nut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Applies to vehicles with aluminum link arm

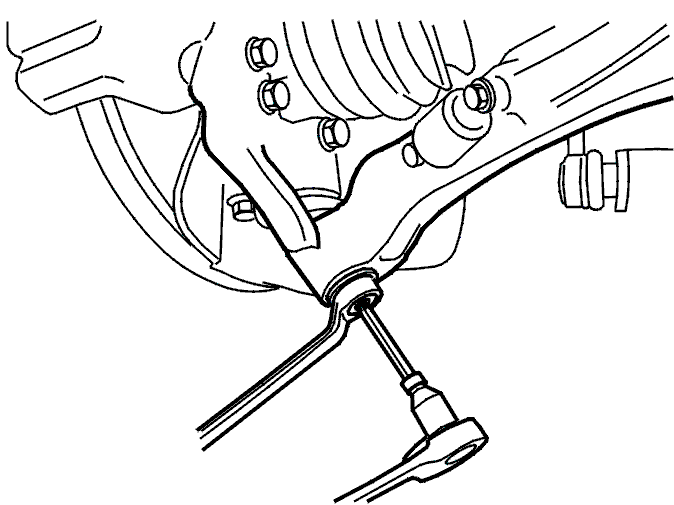

Fig 1: Identifying Ball Joint Nut Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut on the control arm. Use a Torx wrench as a counterhold.

Applies to vehicles with steel control arm

Fig 2: Ball Joint Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove nut.
