Installing The Control Arm And Ball Joint

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

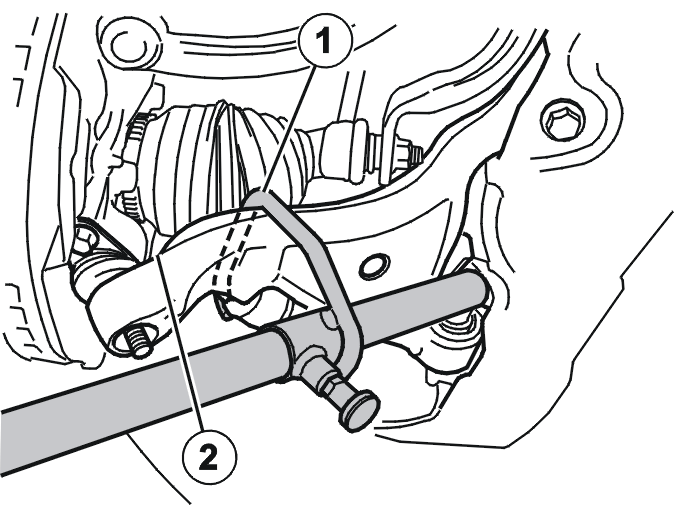

Fig 1: Identifying Proper Position Of Hook & Lever 9997076

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Do not pull the drive shaft as the axial pinions cannot support large loads.

NOTE:

If the hook is positioned at point (2) there is a risk of damaging the rubber boot on the ball joint.

Press the control arm down using lever 9997076 . Position the hook at (1).

Align the spring strut in the control arm.
