Installing The Ball Joint

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Applies to vehicles with aluminum link arm

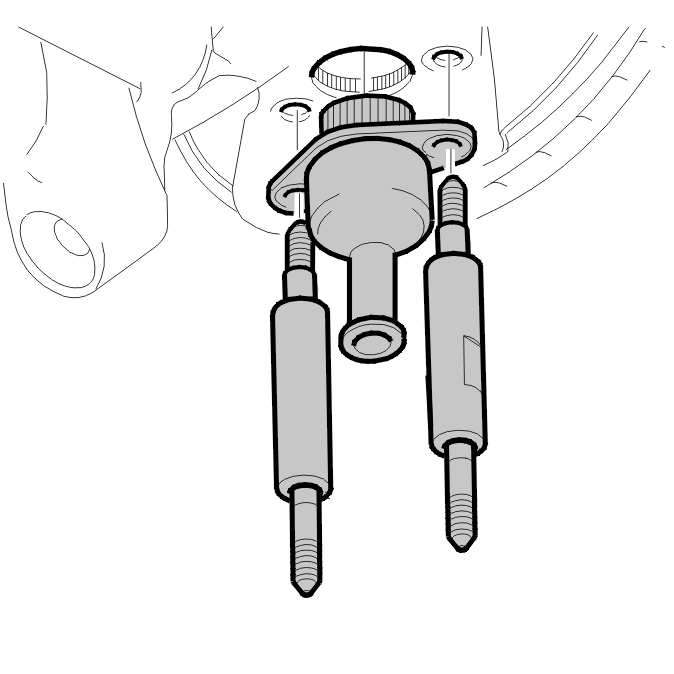

Fig 1: Identifying Loose Installation Of New Ball Joint Using Guide Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Leave the protective cap for the ball joint in position to prevent damaging the rubber boot.

Loosely install the new ball joint using the guide screws.

Applies to vehicles with steel control arm

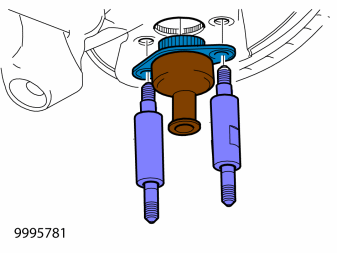

Fig 2: Identifying Ball Joint & Press Tool 999 5781

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Take care not to damage the ball joint boot.

Temporarily remove the protective cap from the ball joint.

Loosely install the new ball joint using the press tool 9995781 .

Applies to all

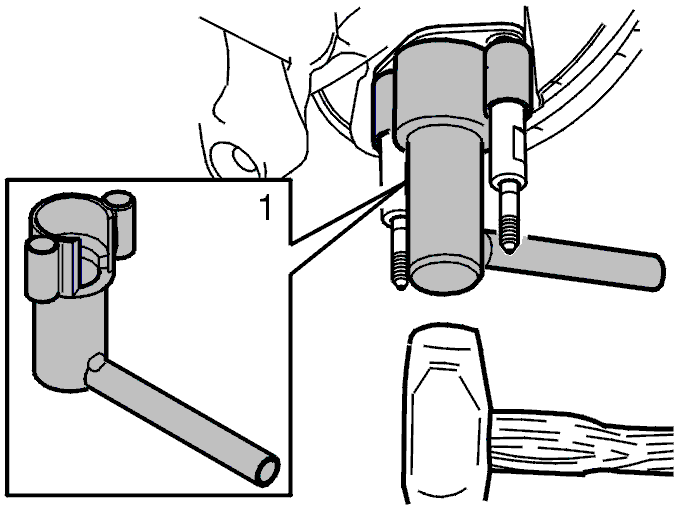

Fig 3: Identifying Ball Joint Pressed Up Towards Seat Using Press Tool 999 5796

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Take care not to damage the ball joint boot.

Press the ball joint up towards the seat. Use press tool 9995796 . Check that the ball joint is centered in the seat.

Knock in the ball joint. Use a copper mallet.

Remove the guide screws.

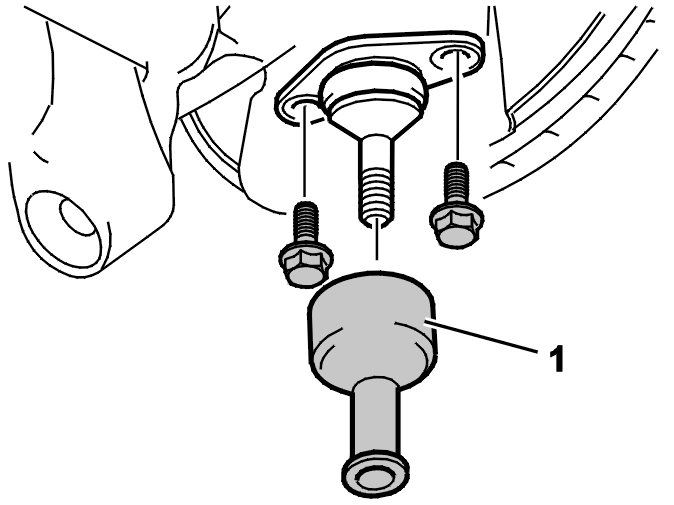

Fig 4: Identifying Ball Joint & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the ball joint. Use 2 x new screws. Tighten. See: Tightening torque .

Remove the protective cap.
