Installing The Ball Joint Nut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Applies to vehicles with aluminum link arm

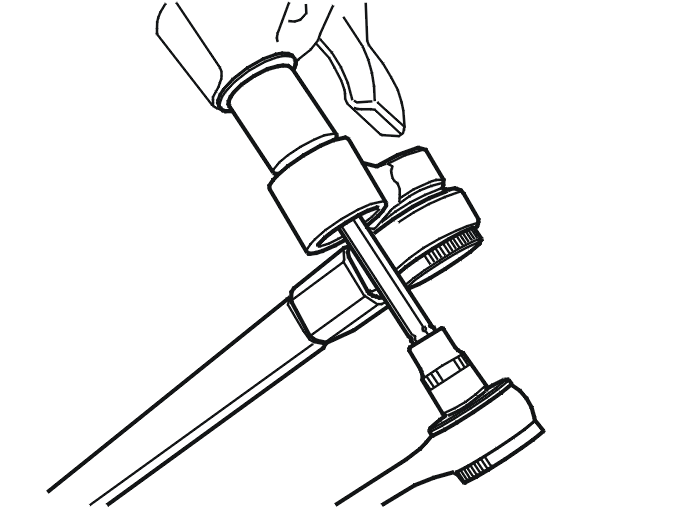

Fig 1: Identifying Ball Joint Nut Installed Using 951 2927

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

The ball joint pinion must not rotate. Use: 9512927 as a counterhold to prevent damaging the rubber boot

NOTE:

Use 9995500 as a torque wrench.

NOTE:

A counterhold is not required when angle tightening if the joint has been tightened to 50 Nm. The friction between the ball joint and control arm is greater than between the nut and threads on the ball joint.

Install the 1 x nut.

Tighten according to step 1. See Summary of tightening torques for specific components .

Use bevel protractor: 9512050 .

Angle-tighten according to step 2. See Summary of tightening torques for specific components .

Rust protect the thread outside the nut.

Applies to vehicles with steel control arm

Fig 2: Identifying Ball Joint Nut & Tool 9995467

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use socket 9995467 as adapter for the torque wrench or a cap wrench adapter that is deigned for torque wrench.

Install the new nut and tighten acc. to Tightening torque .

Rust protect the thread outside the nut.
