Removing The Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

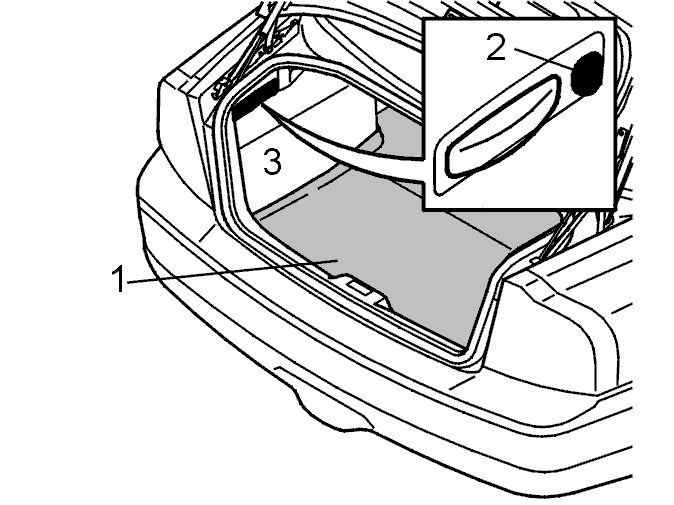

Fig 1: Cargo Compartment Protective Cover

GLL111570

Courtesy of VOLVO CARS OF NORTH AMERICA.

In the cargo compartment

Remove the protective cover from the handle for the backrest lock
Pull the handle to release the backrest
Remove the floor carpet.

In the passenger compartment

Remove

the two seat cushions. Pull straight up
the side cushion according to Side cushion

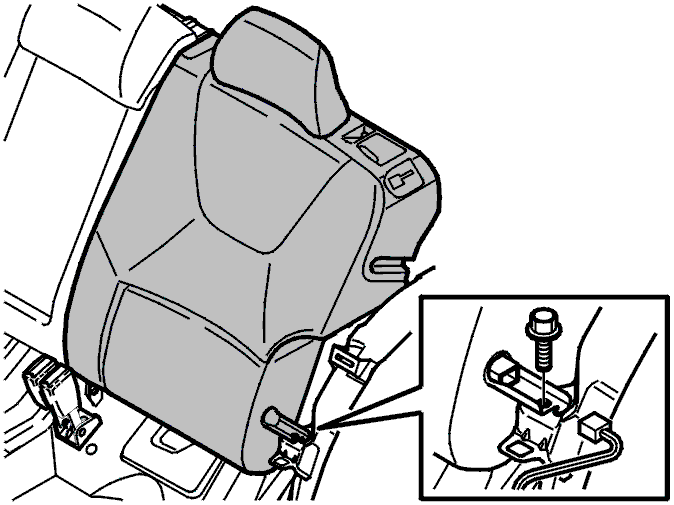

Fig 2: Backrest Connector

GLL119153

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the connector on the left and right-hand sides
the screws on the left and right-hand sides.

Fig 3: Reinforcement Strut Screws

GLL111929

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully fold the backrest forward approximately 5-6 centimeters. Do not damage the center console.

Remove

the two screws from the reinforcement strut

Lift out the backrest
