Removing Armrests

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

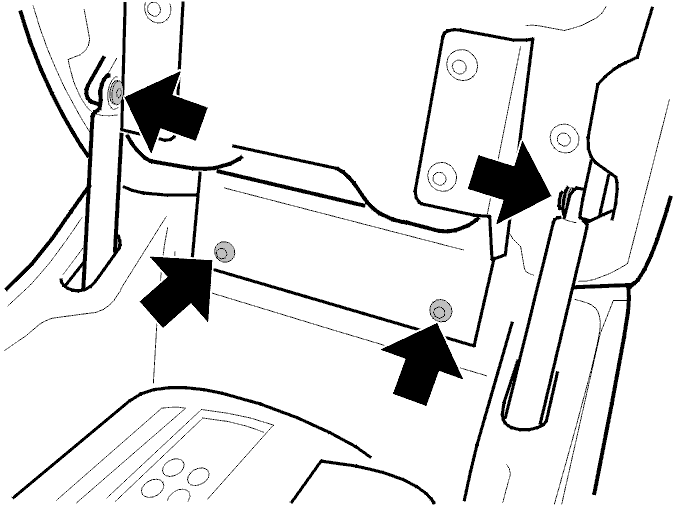

Fig 1: Locating Center Console Armrest Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the armrest on the center console.

Remove

the two screws
the thrust washers from the gas struts
the armrest
