Plenum chamber

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

The chamber liner is secured with 6 blind rivets.

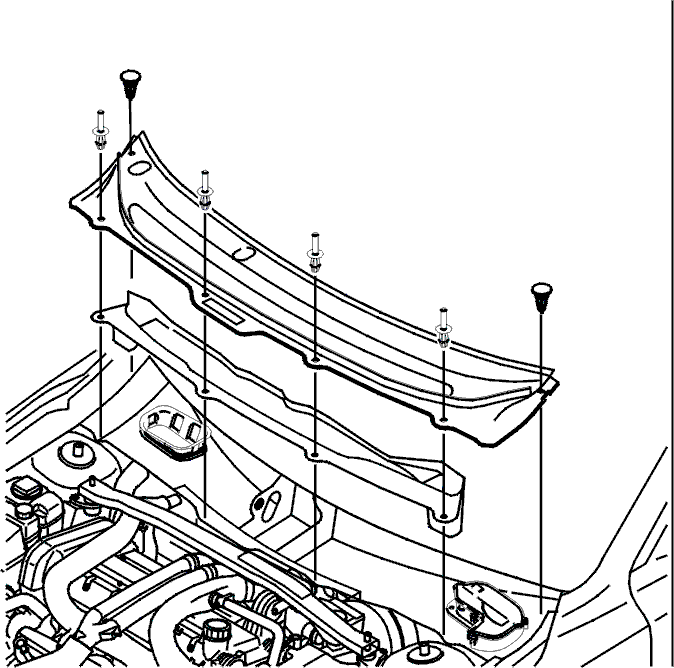

Fig 1: Identifying Plenum Chamber And Gutter
GLL104917Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the center of the rivet head.

Lift up the chamber

Install:

In reverse order.
