Pressure valve and washer nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

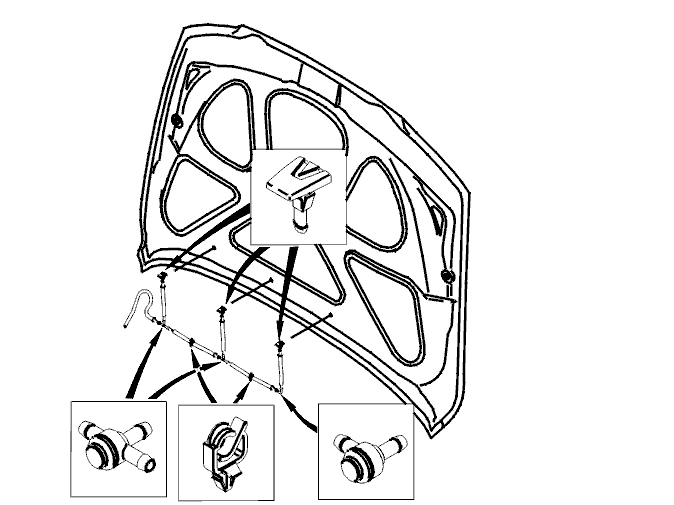

Fig 1: Washer Nozzle And Hose Connectors

GLL111014

Courtesy of VOLVO CARS OF NORTH AMERICA.

If a washer nozzle leaks windshield washer fluid, the pressure valve must be checked before the washer nozzle is replaced.

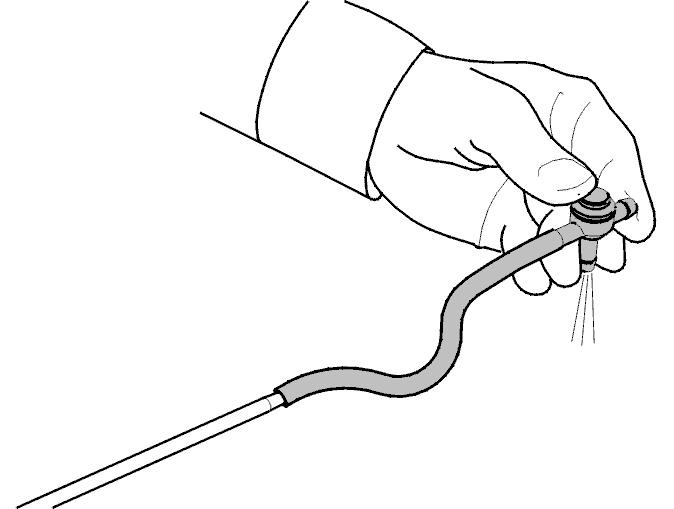

Fig 2: Blowing Washer Nozzle And Non-Return Valve Clean In Direction Of Flow

GLL103169

Courtesy of VOLVO CARS OF NORTH AMERICA.

Checking and cleaning right-hand side pressure valve

Remove the right-hand side pressure valve. Blow clean as shown.

Fig 3: Washing And Checking Whether Washer Nozzle Is Still Leaking Windshield Washer Fluid

GLL111015

Courtesy of VOLVO CARS OF NORTH AMERICA.

Checking and cleaning the center pressure valve

Remove the center pressure valve. Blow clean as shown.

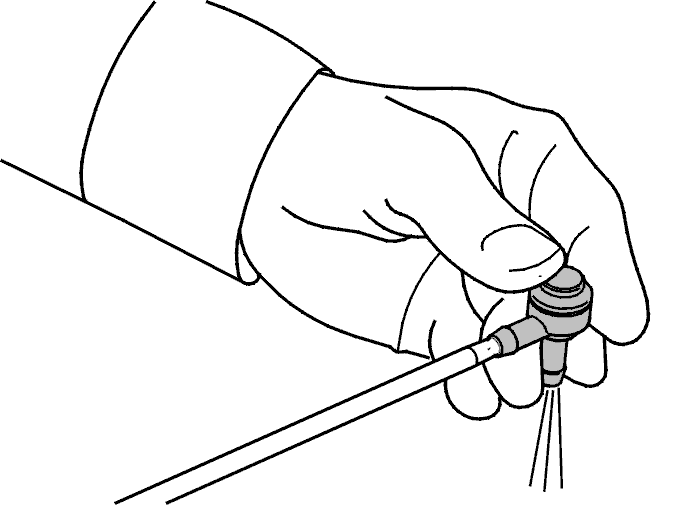

Fig 4: Blowing Clean Pressure Valve

GLL111016

Courtesy of VOLVO CARS OF NORTH AMERICA.

Checking and cleaning left-hand side pressure valve

Remove the left-hand side pressure valve. Blow clean as shown.

Check that the hoses are not blocked.
