Adjustment, United Kingdom

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always adjust the headlamp beam according to the legal requirements of the market.

Fig 1: Button Control Lighting Level

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition and low beam on
Check the button that controls the lighting level. Set the button to the 0 position
Check the current. Check that the power supply is sufficient for the desired beam level
CAUTION: Always adjust the beam with low beam switched on.

Fig 2: Adjusting Beam Vertically And Horizontally (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Adjusting Beam Vertically And Horizontally (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

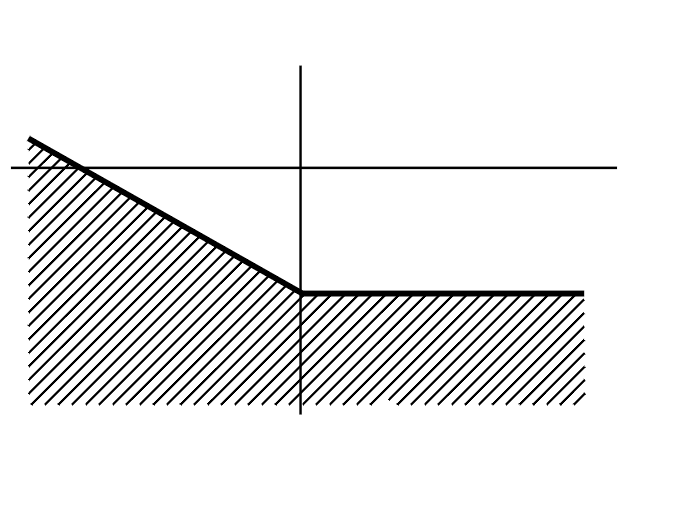

Adjust the beam vertically (Y) using an Allen screw, as shown
Adjust the beam horizontally (X) using an Allen screw, as shown
HINT: Use a Ø 6 mm Allen screw.

WARNING: Always adjust the headlamp beam according to the legal requirements of the market.
