Front Bumper (1999-2001): Headlamps: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

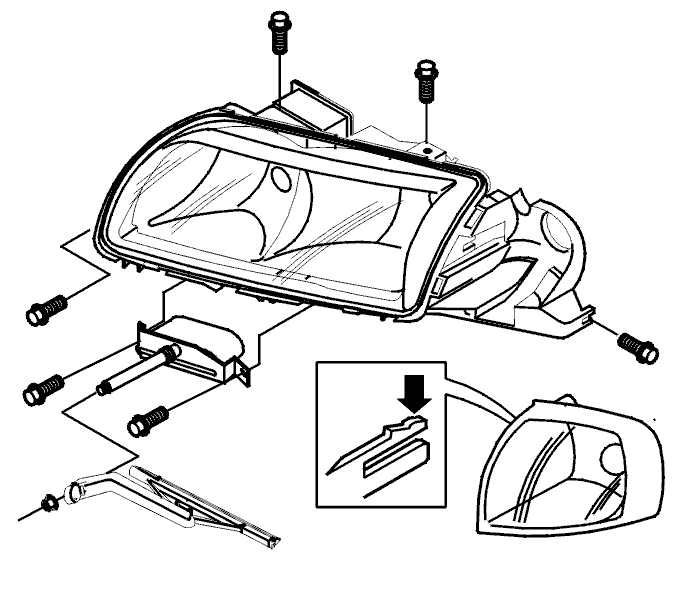

Fig 1: Headlamp Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Switch off the ignition
Set the switch for external lighting to zero
Remove the headlamp wiper arm and the motor according to Wiper arm and wiper motor, headlamp, replacing
Remove the bumper cover according to Casing, bumper front, replacing
Remove the 4 screws securing the headlamp. Remove the headlamp.

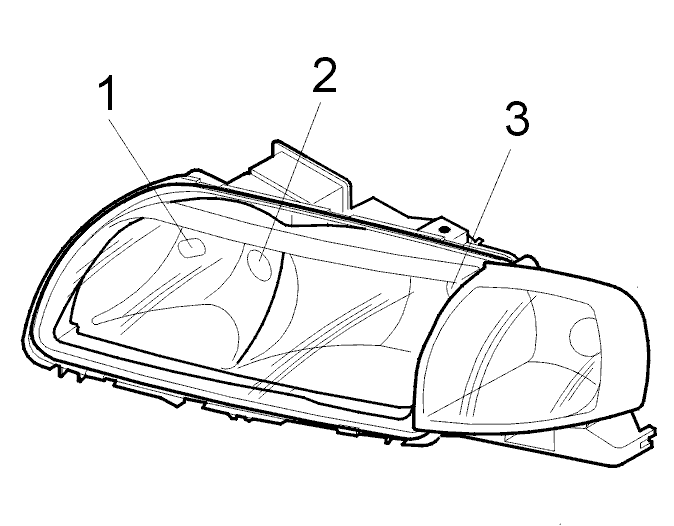

Fig 2: Identifying Parking Lamps, Low Beam, And High Beam

Courtesy of VOLVO CARS OF NORTH AMERICA.

The graphic shows the left headlamp.

Parking lamps
Low beam
High beam.
