Removing the front bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Wiper Arm And Nut

GLL101551

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the sidemarker lamp
the wiper arm, if applicable.

Fig 2: Identifying Side-Marker Lamp Trim

GLL101553

Courtesy of VOLVO CARS OF NORTH AMERICA.

the trims.

Fig 3: Bumper Screws And Clips -- Driver Side

GLL101557

Courtesy of VOLVO CARS OF NORTH AMERICA.

the screws, 1 on each side, in the upper edge
the clips, 1 on each side, in the underside.

Pull out the sides so that they release from the bumper bracket.

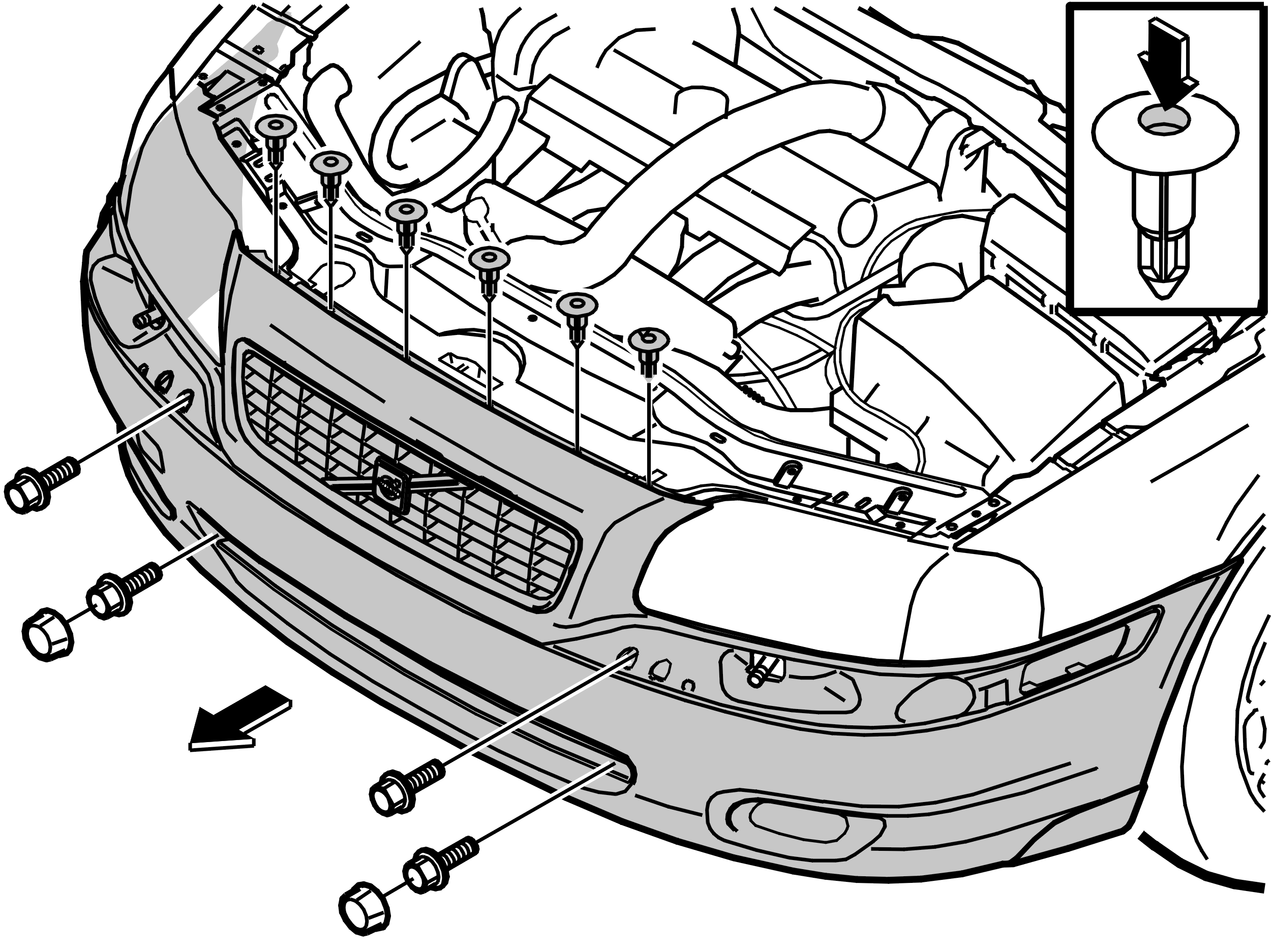

Fig 4: Bumper Screws And Clips

GLL101555

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 4 screws
the 6 clips.

Separate the connector on the left-hand side.

Remove the bumper.

HINT: This operation is easier with 2 people.
