Replacing the cover for the front bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

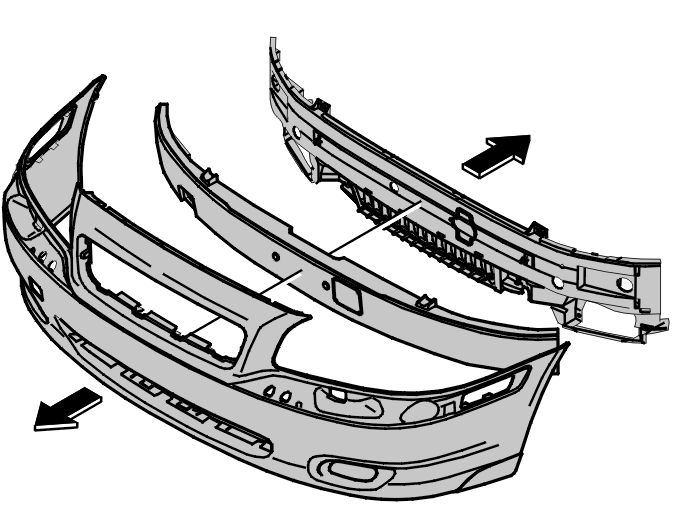

Fig 1: Casing And Foam Rubber
GLL101561Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the rear section of the casing by unclipping the mounting element of the reverse of the rear section.

Replace the casing.

Press the casing, the rear section and foam rubber together.
