Cargo compartment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

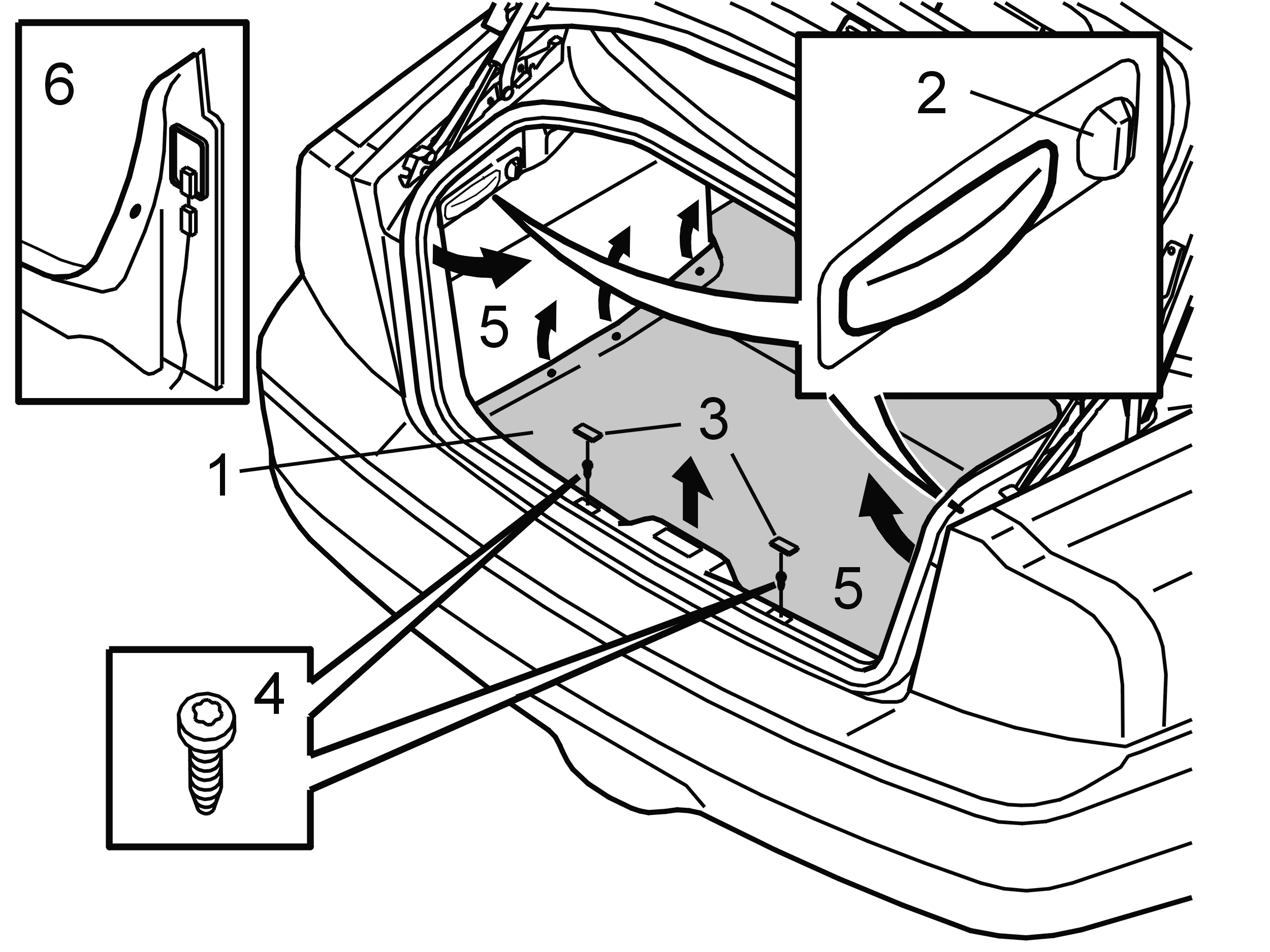

Fold forward the rear section of the carpet (1) in the cargo compartment.
Turn the clips (2). Remove the four clips for the left and right side panels.
Fold the panels forward towards the center.
Remove the cover (3).
Remove the screws
Grip the outer edges of the panel (5). Pull the panel inwards towards the center so that the clips release at the sides.
Disconnect the connectors (6) for the side lamps.
Remove the panel by pulling it straight upwards so that the clips release from rear crossmember.
