Fender liner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

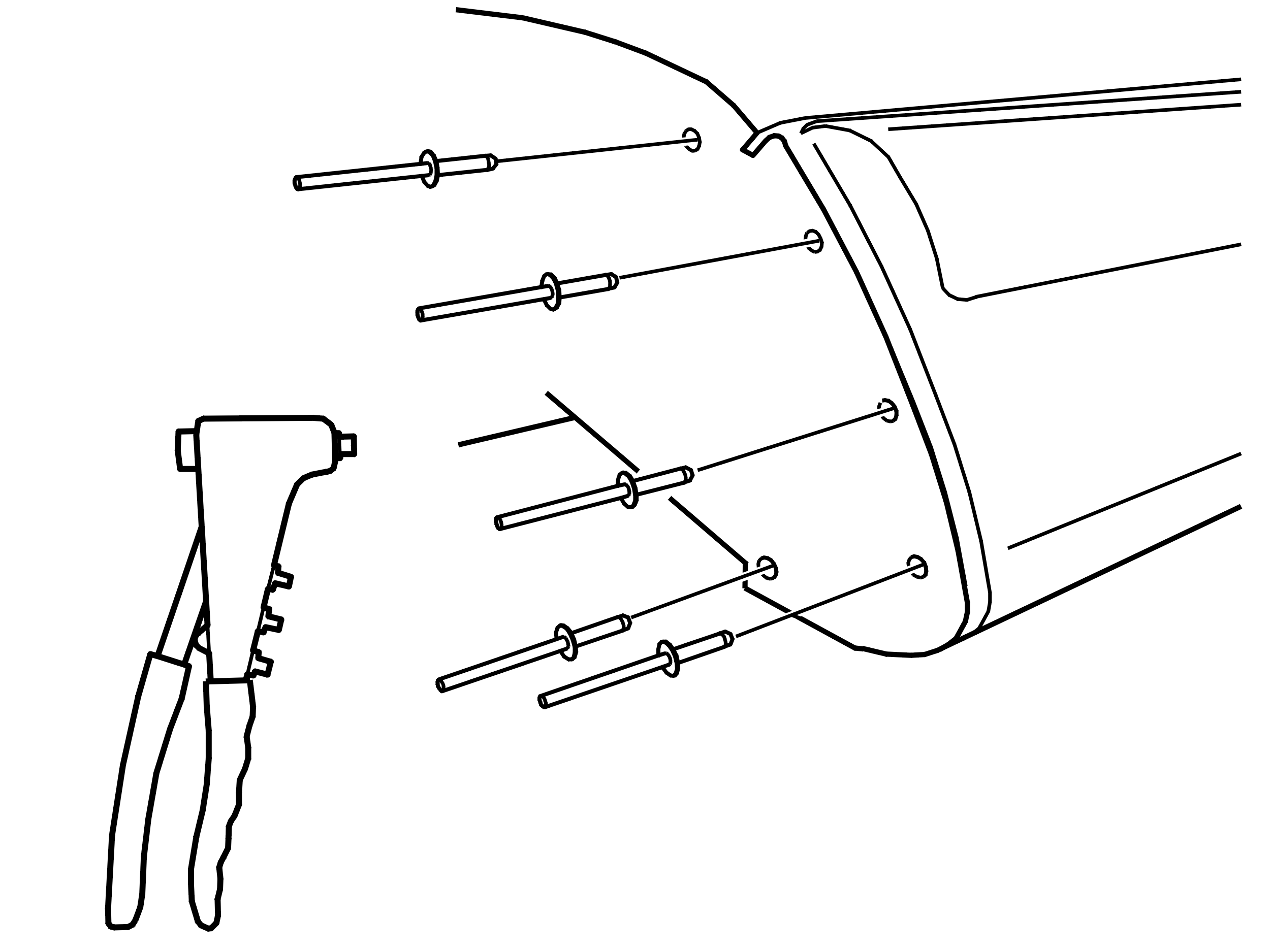

Fig 1: Identifying Fender Liner Installed In Bumper Cover Using Rivets
GLL105106Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the fender liner in the bumper cover. Use rivets.

Install the wheels. Tighten to 110 Nm  .
