Cargo compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

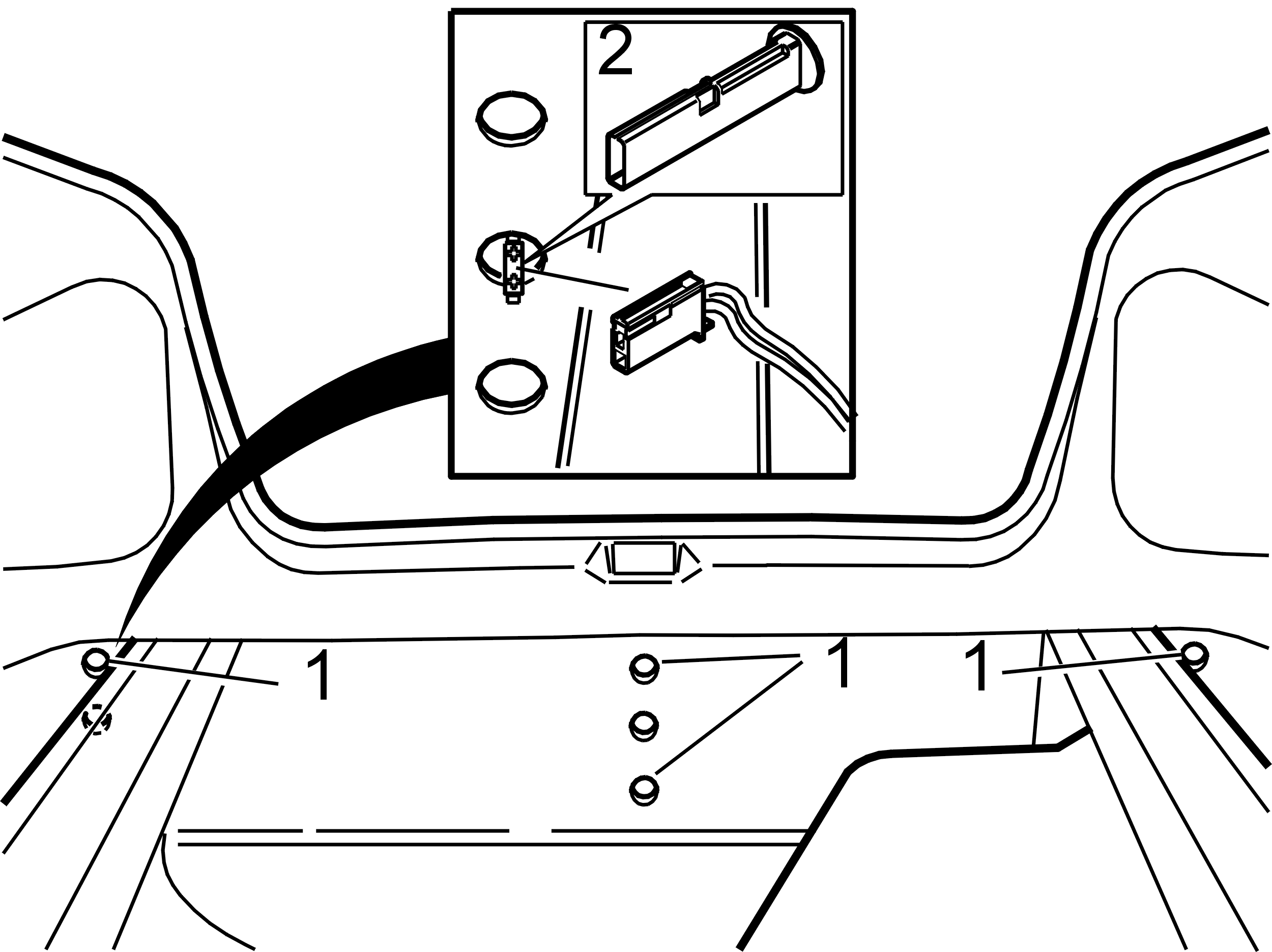

Fig 1: Connector Antenna
GLL104798Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the nuts (1). Tighten to 18 Nm  .

Install the rubber seals (1) over the nuts.

Connect the connector for the radio antenna on the right-hand side.
