Casing, bumper front, replacing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

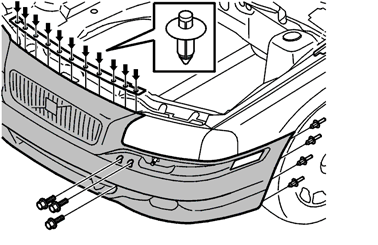

Fig 1: Identifying Front Bumper Casing Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

headlamps 2x, 2x nuts
the 6 screws
8 blind rivets.
Drill out
11 clips.
Press down the center section
the metal strip.

Remove the bumper.

Separate the connector on the left-hand side.

Remove the casing.
