Making holes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

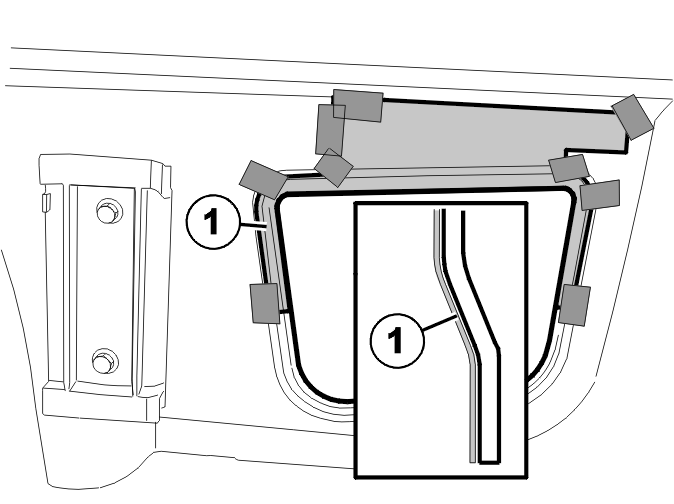

Fig 1: Identifying Template And Profile

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tape the template for making holes into place. Align the template against the air evacuation hole. When taping in position, ensure that the template follows the profile (1) of the plate.

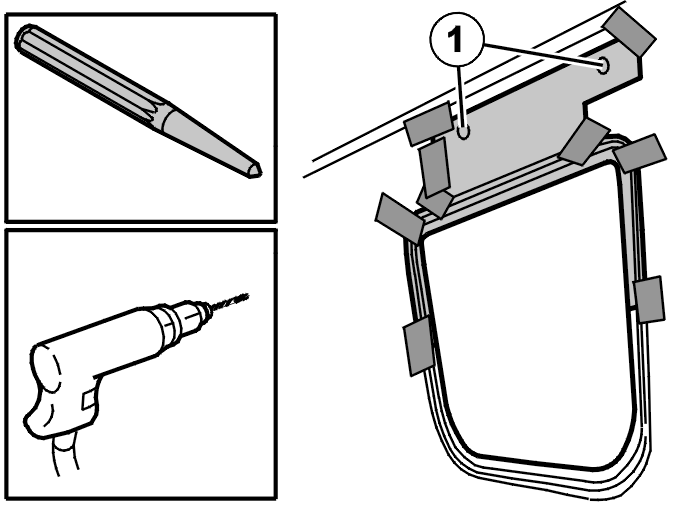

Fig 2: Identifying Holes, Center Punch And Drill

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the holes using a center punch.

NOTE: Check that the cable harness has been moved away from the area behind.

Pre-drill with a 3 mm diameter drill bit.

Finish with a 7 mm diameter drill bit.

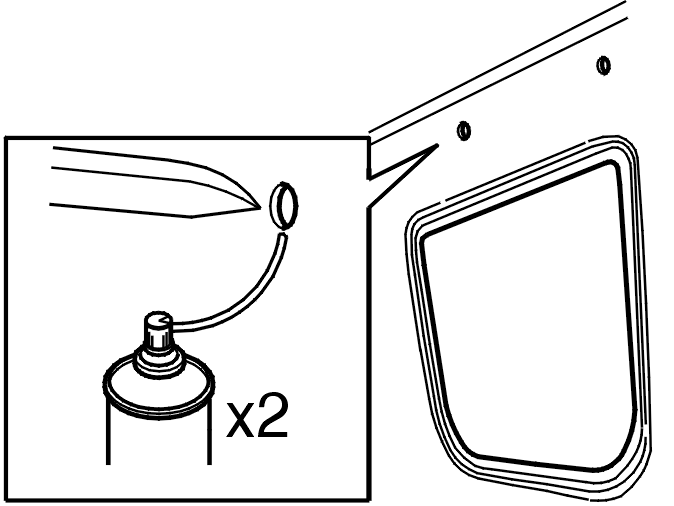

Fig 3: Identifying Rust-Proof Agent And Holes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Smooth off any sharp edges.

Carefully sand down the inside and outside.

Rust-proof both the insides and outsides of the holes. Use high viscosity rust proofing agent 951 0227.
