Installing brackets

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

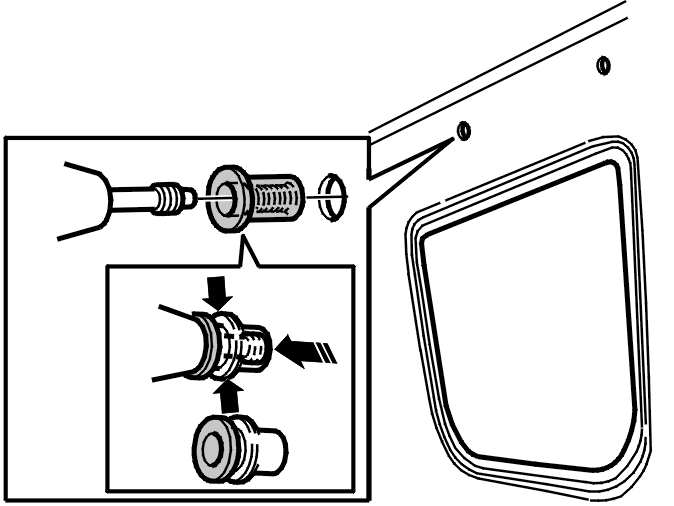

Fig 1: Identifying M5 Rivet Nut Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install 2 M5 rivet nuts on each side. Use special tool

1159689 .

NOTE: Install the M5 screws in the rivet nuts. Apply high viscosity rust-proofing agent, P/N 951 0226, to the screws.

NOTE: Remove the M5 screws.

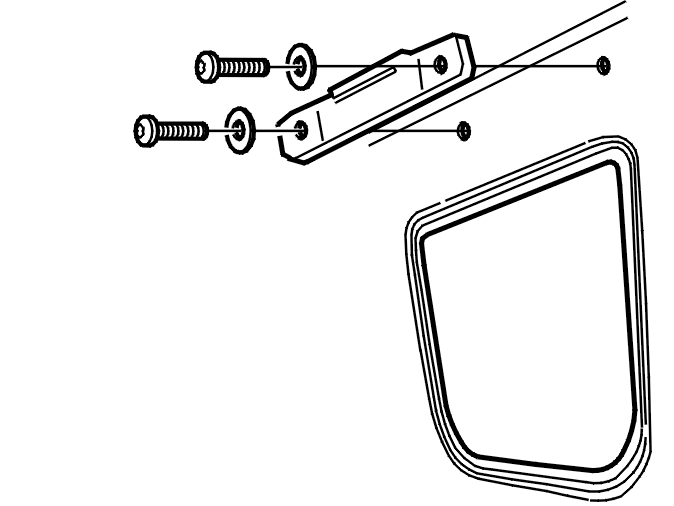

Fig 2: Identifying Bracket, Screws And Flat Washers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket. Use 2 x M5 screws and the flat washers from the kit.

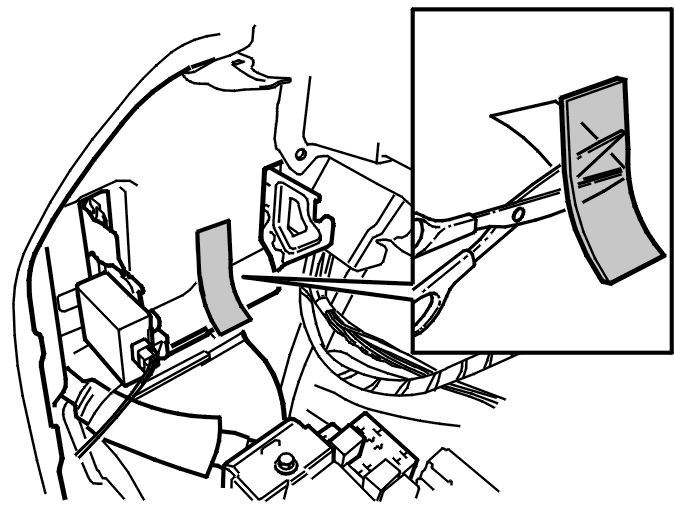

Fig 3: Identifying Joint Protection Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the screws. See Tightening torque .

Install the joint protection, P/N 912 8331, on the rivet nut which protrudes under the electrical unit.
