Installing Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

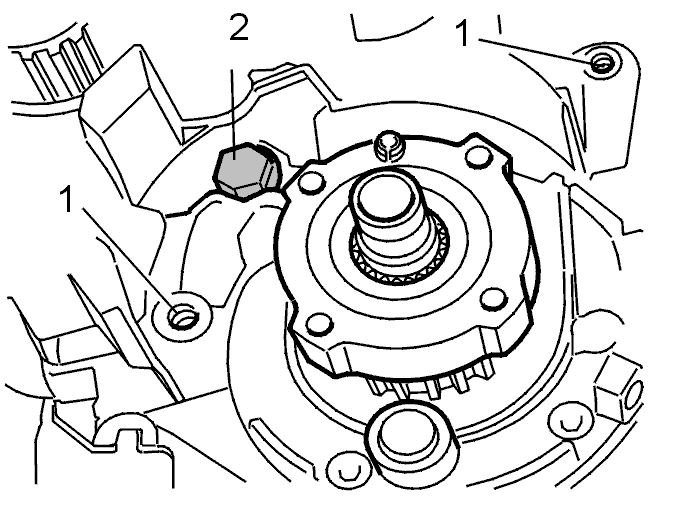

Fig 1: Identifying Piston Cooling Valve And Inner Timing Cover Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

a new piston cooling valve (2) with a new seal washer. Tighten to 35 Nm
the inner timing cover. First press the cover into place over the flange at the top of the coolant pump. Then press the remaining section of the cover into place over the flange around the pump. Check that the cover is correctly positioned
the two screws (1) securing the inner timing cover to the cylinder block
the lower belt guard.
