Oil Cooler, Installing:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Use new seals.
The seals must be greased prior to installation.

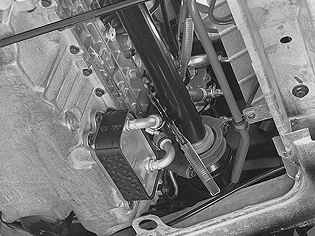

Install:
- the oil cooler.
Screw the 4 oil cooler screws into place.
Tighten to: 17 Nm
- the coolant hoses.
Remove the lock grip pliers.
Screw the splash guard into place.
