Remove the engine cooling fan (FC)

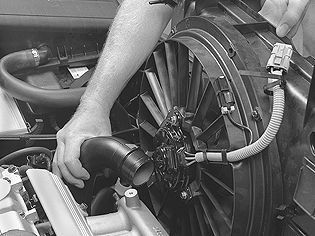

Fig 1: Identifying Engine Cooling Fan (FC)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• detach the brake vacuum hose from the intake.
• the air duct for the control module box and the air cleaner (ACL) air intake hose.
• the connectors, relays and canister purge (CP) valve from the fan shroud.

  Place the wiring to one side.

• the screws for the fan shroud and the relay holder mounting.

Lift up the relay holder and remove the upper hose between the charge air cooler and the intake.

Seal the openings.

Slacken off the screw clip on the throttle body (TB) (electronic throttle module) so that the charge air pipe can be pressed backwards.

Press the charge air pipe backward and lift up the engine cooling fan (FC) with its cover.

As illustrated.
