Location Of Components

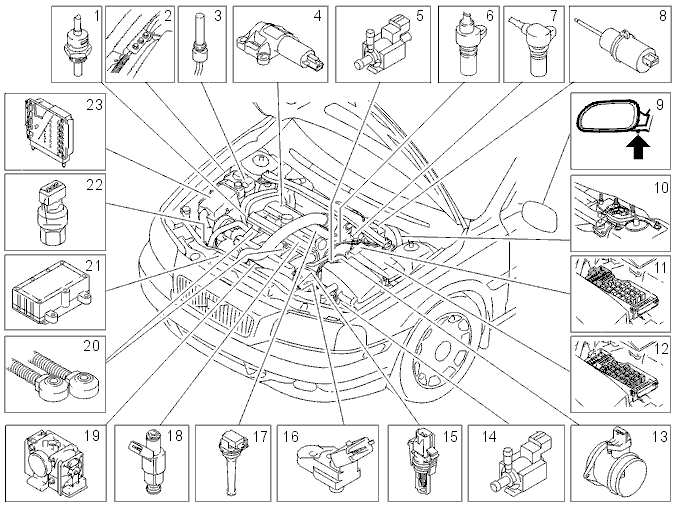

Fig 1: Identifying Engine Equipment, Ignition And Control System Component Locations
GLL103007Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Engine coolant temperature (ECT) sensor
  2. Ground terminal
  3. Coolant level sensor
  4. Camshaft reset valve
  5. Turbocharger (TC) control valve
  6. Engine speed (RPM) sensor
  7. Camshaft position sensor (CMP)
  8. Brake pedal sensor
  9. Outer temperature sensor
  10. Power supply terminal
  11. Fusebox
  12. Relay box
  13. Mass air flow (MAF) sensor
  14. Canister purge (CP) valve
  15. Intake air temperature sensor
  16. Boost pressure sensor
  17. Ignition coil
  18. Injector
  19. Throttle unit
  20. Knock sensor (KS)
  21. Engine cooling fan (FC) control module
  22. A/C pressure sensor
  23. Engine control module (ECM).
