Fuel and residual pressures, checking

Check the fuel pressure and residual pressure. See Checking fuel and residual pressures .

Remedy as necessary.

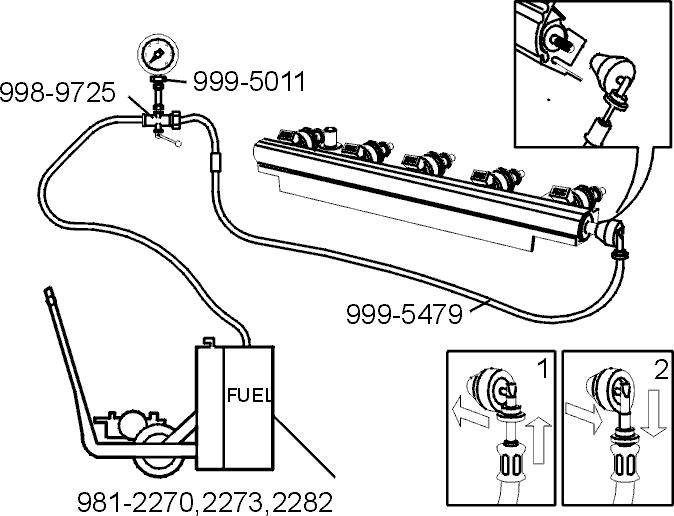

Fig 1: Identifying Fuel Rail And Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Was the pressure OK?

• YES

  Refer to Checking the compression

• NO

  Refer to Verification
