Close rear gas tank valve

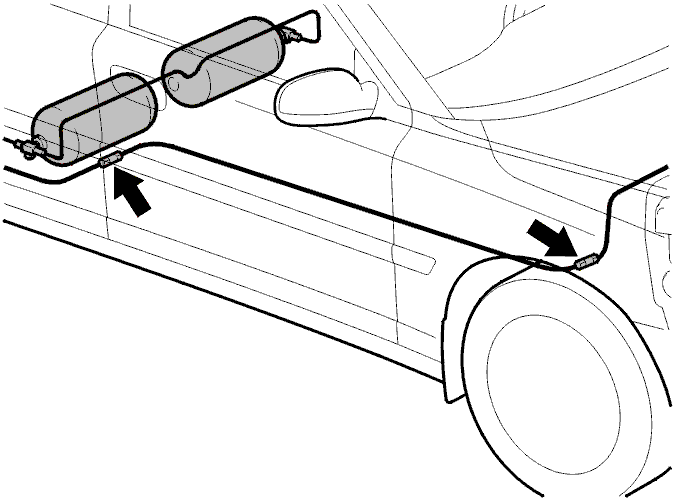

Fig 1: Identifying Rear Gas Tank Valve
GLL105424Courtesy of VOLVO CARS OF NORTH AMERICA.

Close the valve for the engine gas on the rear gas tank.

Disconnect the connector on the tank strap, rear gas tank.

Open the front screw on the gas pipe.

NOTE:

Follow any relevant national statutory requirements.
