Install sensor

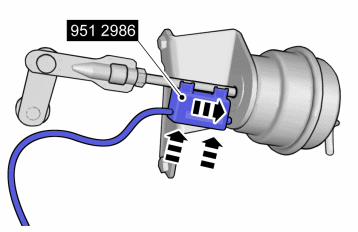

Fig 1: Identifying Sensor On The Wastegate Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install sensor 9512986 on the wastegate shaft.

Position the sensor so that the pin is about 2-5 mm from max pushed in position.

Ensure that the sensor is positioned to allow free movement with at least 15 mm in the direction of the wastegate shaft
