Final check

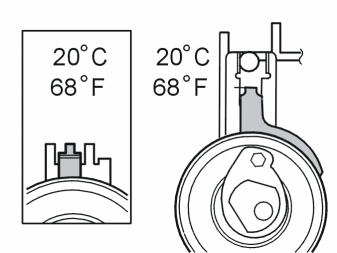

Fig 1: Checking Markings And Belt Tension
GLL148926Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Checking the markings and belt tension.

Position the upper timing cover.

Turn the crankshaft 2 rotations. Check that the markings on the crankshaft and timing gear pulleys correspond.

Remove the upper timing cover.
