Install connector pins

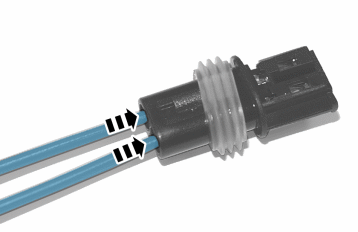

Fig 1: Identifying Connector Pin(s) Installation In Seat
GLL161566Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Make sure that the connector pins end up in the correct position.

Install the connector pins in the seat so that the locks on the pin end up in the opening on the side of the seat.
