Replacing the camshaft seal

Fig 1: Identifying Seal And Special Tool 999 5651

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully press in tool 9995651 between the sealing ring and the camshaft.

Carefully pry out the seal.

Cleaning

To clean the shaft journal and mating surface, use emery cloth P/N 951 1024.

NOTE:

When cleaning work around the shaft journal, not in and out. It is essential that any residue from the emery cloth and any other contaminants are completely removed before the new sealing ring is installed.

Oil the new seal. Install the new seal on the camshaft. Use drift 9995718 .

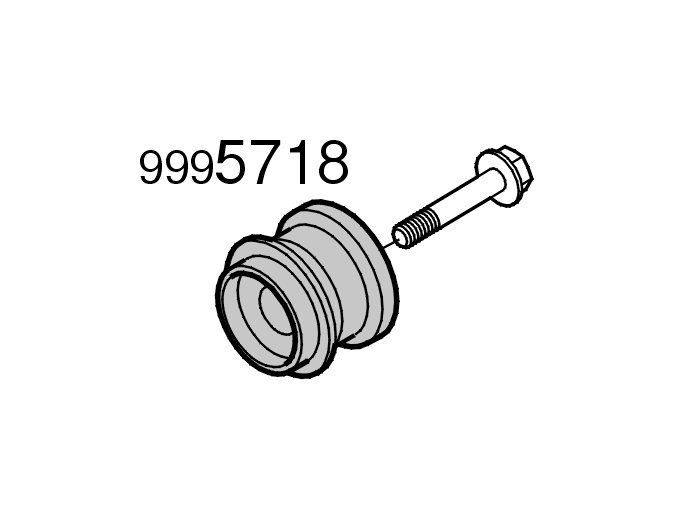

Fig 2: Identifying Special Tool Drift 999 5718

Courtesy of VOLVO CARS OF NORTH AMERICA.

Oil the new seal.

Install the new seal on the camshaft. Use drift 9995718 .
