Removing front suspension components (both sides)

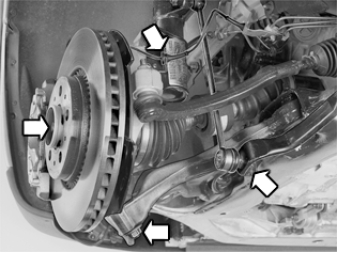

Fig 1: Identifying Front Suspension Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the ABS line from the mounting in the spring strut.

Remove:

• the screw for the drive shaft using a screwdriver in the brake disc vents
• the link from the anti-roll bar
• the nut for the ball joint and link arm. Clean the exposed threads outside the nut. Spray using rust solvent before removing the nut.
