Installing the engine and transmission unit
Raise the engine and the transmission unit. Use a lifting table with locating pins.
Stop when the sub-frame is approximately 15 cm below the frame members.
Install (left and right-hand sides):
- the drive shaft to the hub. Install the center screws. Do not tighten yet.
- the ball joint to the control arm. Install the nuts. Do not tighten yet. NOTE:
Make sure that the contact faces on the ball joints and link arms are clean.
Twist the engine block heater (option) into position. Check that the air conditioning (A/C) compressor is correctly positioned.
Check that the tie rod is in the correct position. Check that the transmission cable is routed between the steering shaft and the firewall.
Align the steering shaft joint with the hole in the firewall.
Lift the engine and transmission unit up to the frame members.
Make sure that no hoses, wiring, or anything else catches.
Install the sub-frame's four screws together with the sub-frame's brackets and engine heater, if installed.
Use new screws. Lube the screws with oil.
Tighten, see: Summary of specific components and tightening torques .
First tighten the screws on the sub-frame's left side, then on the right.
Tighten the screws for the brackets M10.
Remove the lifting table.

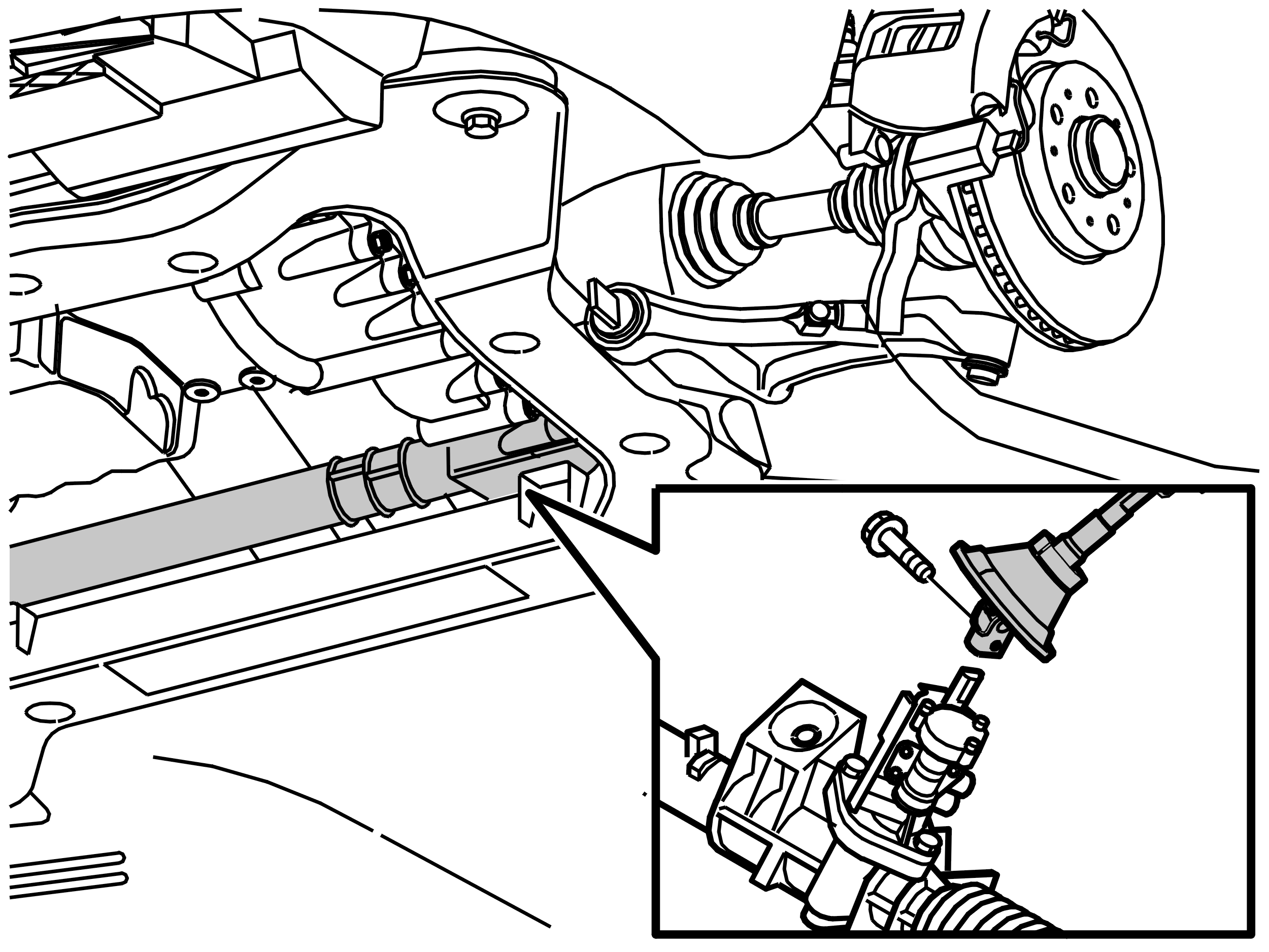

Install a new screw on the steering shaft joint. Torque tighten.
