Installing the components for the engine pad

• the thermostat housing
• knock sensor (KS)
• flame trap
• the pipe screw for the water-heated crankcase ventilation.

If in doubt about the order of assembly, see Engine body, exposing .

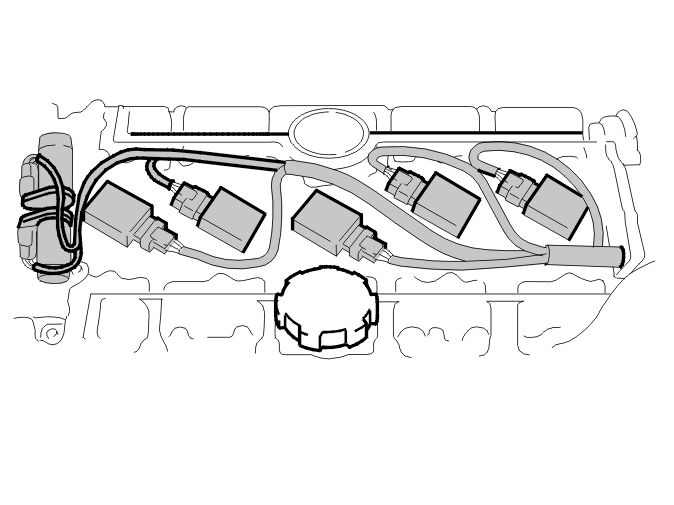

Fig 1: Identifying Ignition Coil And Wiring Routing

Courtesy of VOLVO CARS OF NORTH AMERICA.

The direction of the ignition coil and the wiring routing is illustrated.
