Removing the engine cooling fan (FC)

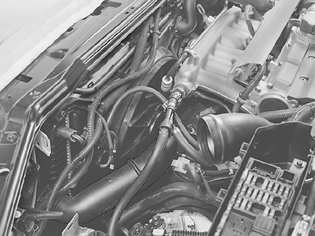

Fig 1: Identifying Engine Compartment Components - Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the brake vacuum hose from the ejector valve
• The canister purge (CP) valve from the mounting on the fan shroud. Disconnect the connector.

Expose the wiring and the breather tube for the radiator.

Disconnect the connectors for the engine cooling fan (FC).

Remove

• the screws securing the fan shroud to the front panel
• the dip stick
• the upper oil hose for the transmission at the connection to the radiator (automatic transmissions only). Seal the openings.

Lift up and remove the engine cooling fan (FC).

Remove

• the connectors for the pressure sensor and temperature sensor in the plastic charge air pipe between the charge air cooler (CAC) and the throttle body (TB)
• the rubber hose at the intake for the charge air cooler (CAC)
• the brake vacuum hose at the intake manifold
• the plastic pipe between the throttle body (TB) and the charge air cooler (CAC)
• the lower oil hose for the transmission at the connection to the radiator (automatic transmissions only). Seal the openings.

Install radiator protection 9995474 .
