Replacing the front engine pad

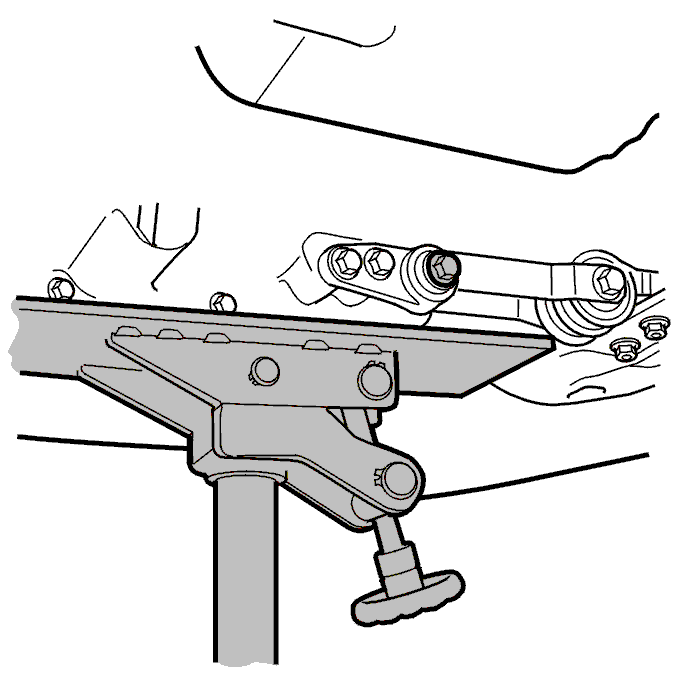

Fig 1: Identifying Mobile Jack Fixture 9995972

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw and nut at the lower torque rod mounting to the bracket on the transmission
position a mobile jack with universal plates 9995972 under the transmission
Check that the plate does not catch in the sub-frame
carefully lift up the engine so that the engine pad can be replaced.

Fig 2: Identifying Front Engine Pad Lower Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

install a new screw in the lower mounting for the engine pad. Do not tighten yet
carefully lower the engine
NOTE:
Ensure that the guide pin at the top of the engine pad locates correctly.
remove the mobile jack.
