Engine mount, front, replacing: Installation: Finishing

Fig 1: Identifying Mobile Jack Fixture 9995972

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Use a new screw and nut  on the lower torque rod. Tighten to 35 Nm  . Angle-tighten 90°  . Use bevel protractor 9512050 .

Fig 2: Identifying Front Engine Pad Lower Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Tighten the lower screw in the engine pad. Tighten to 50 Nm
• Install the splash guard and the air baffle cover under the engine
• Lower the car.

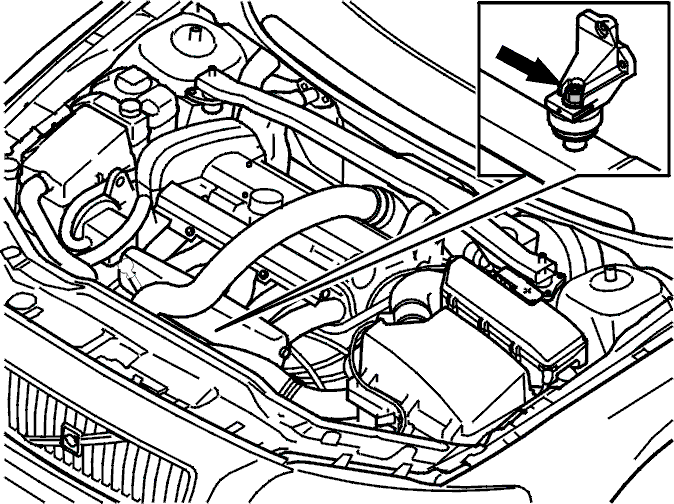

Fig 3: Identifying Nut On Top Of Engine Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the nut on the top of the engine pad. Tighten to 50 Nm
• the charge air pipe to the charge air cooler (CAC)
• the air intake between the air cleaner and the front panel
• the torque rod. See Replacing the torque rod
• the battery lead. See Battery, disconnecting
