Installing the rear engine pad

Finishing

Install a new screw and nut on the lower torque rod. Tighten to 35 Nm . Angle-tighten 90° . Use bevel protractor 9512050 .

Fig 1: Identifying Heated Oxygen Sensor (HO2S) Bracket & Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

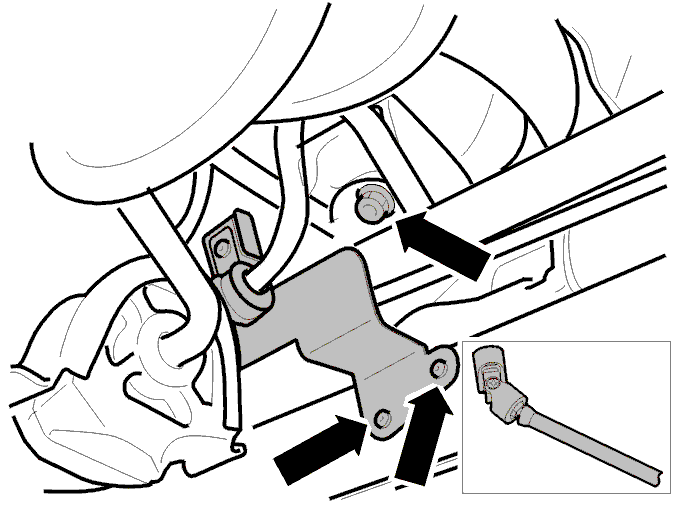

Fig 2: Identifying Exhaust Pipe Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

both the screws for the mountings for the three-way catalytic converter (TWC) member. Tighten to 10 Nm
the brake pipe on the catalytic converter member
the catalytic converter member. Tighten to 25 Nm .

Lower the car.

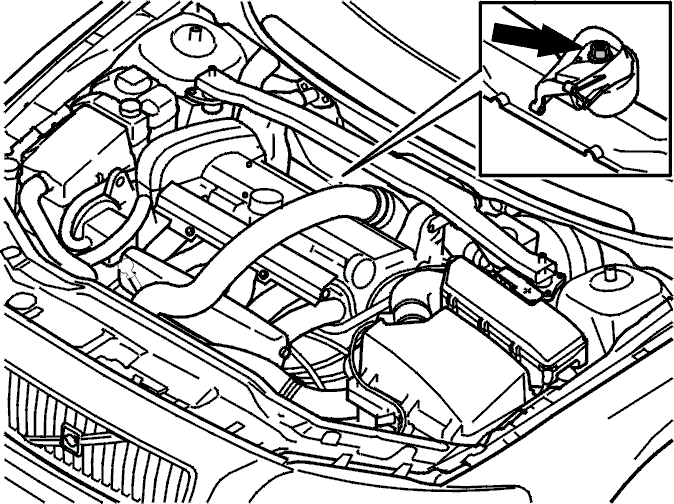

Fig 3: Identifying Upper Nut For Rear Engine Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

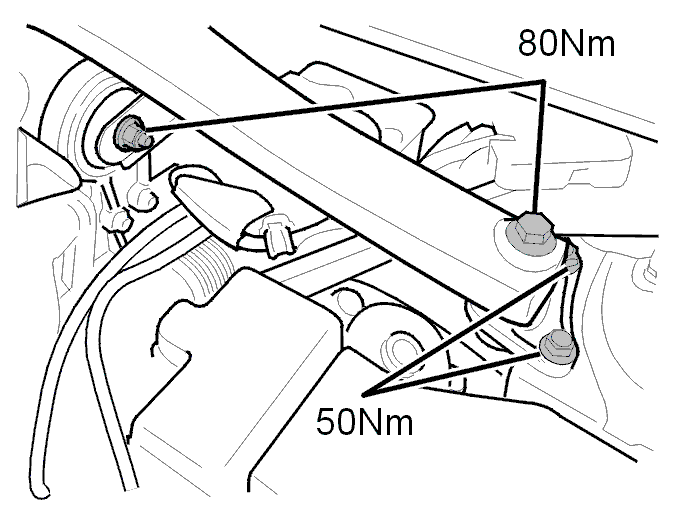

Fig 4: Torque Rod Mounting And Engine Stabilizer Brace Screws With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the engine stabilizer brace between the suspension turrets. Tighten the four screws. Tighten to 50 Nm
the screw for the engine stabilizer brace mounting at the torque control arm on the engine. Tighten to 80 Nm .
