Removing the timing gear pulley

Fig 1: Identifying Camshaft Adjustment Tool 9995452 Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install adjustment tool 9995452 at the rear of the camshafts. Screw the adjustment tool sections together into one.

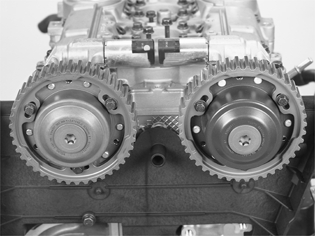

Fig 2: Identifying Camshaft Pulleys

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the center plugs for the variable valve timing units
  NOTE:

  Oil may drain from the VVT-units, use paper or similar to wipe up any oil

• VVT-units' center screws. Carefully pull out the belt pulley with the VVT-unit. Remove tool 9995452 .
