Removing components

Fig 1: Identifying Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the intake hose between the mass air flow (MAF) sensor and the electronic throttle module (ETM)
• the cover over the ignition coils
• the upper timing cover.

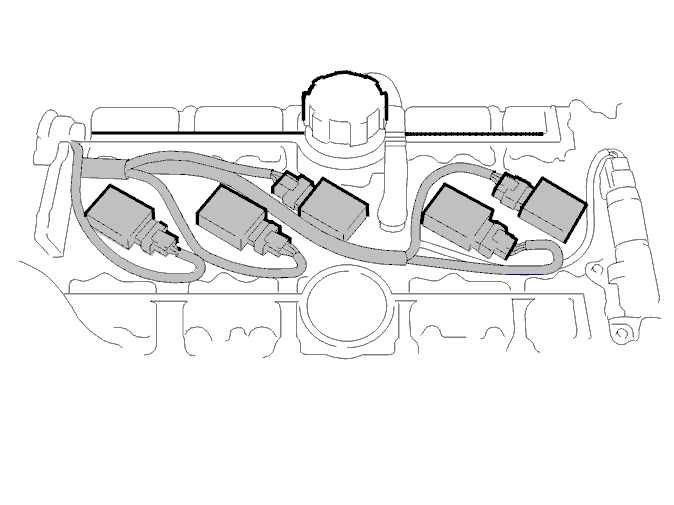

Fig 2: Identifying Ignition Coils

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the ground strip between the cylinder head and the firewall
• the upper and lower engine stabilizer brace
• the camshaft position sensor (CMP) housing and trigger wheel
• the mounting screws for the ignition coil and the screws for the two ground terminals
• disconnect the connector for the variable valve timing solenoid. Lift up and put the ignition coils and wiring to one side.

Fig 1: Identifying Expansion Tank And Servo Oil Reservoir

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Separate the connectors for the ABS sensor and level sensor in the expansion tank
• Lift up the expansion tank and the brake fluid reservoir. Place them on top of engine.
  WARNING:

  Make sure that no power steering fluid leaks out. It is very flammable.

• Remove the auxiliaries belt.
