Installing the front camshaft seal
NOTE:
The purpose of the section, "Installing the VVT-unit/timing belt pulley", described here is to make sure that the VVT-unit is positioned correctly and to reset the camshaft timing belt pulley to the correct position using the markings made at the factory. This is to make sure that the conditions are correct for any later troubleshooting.
Lift up the brake fluid reservoir and the expansion tank. Place them on top of engine.

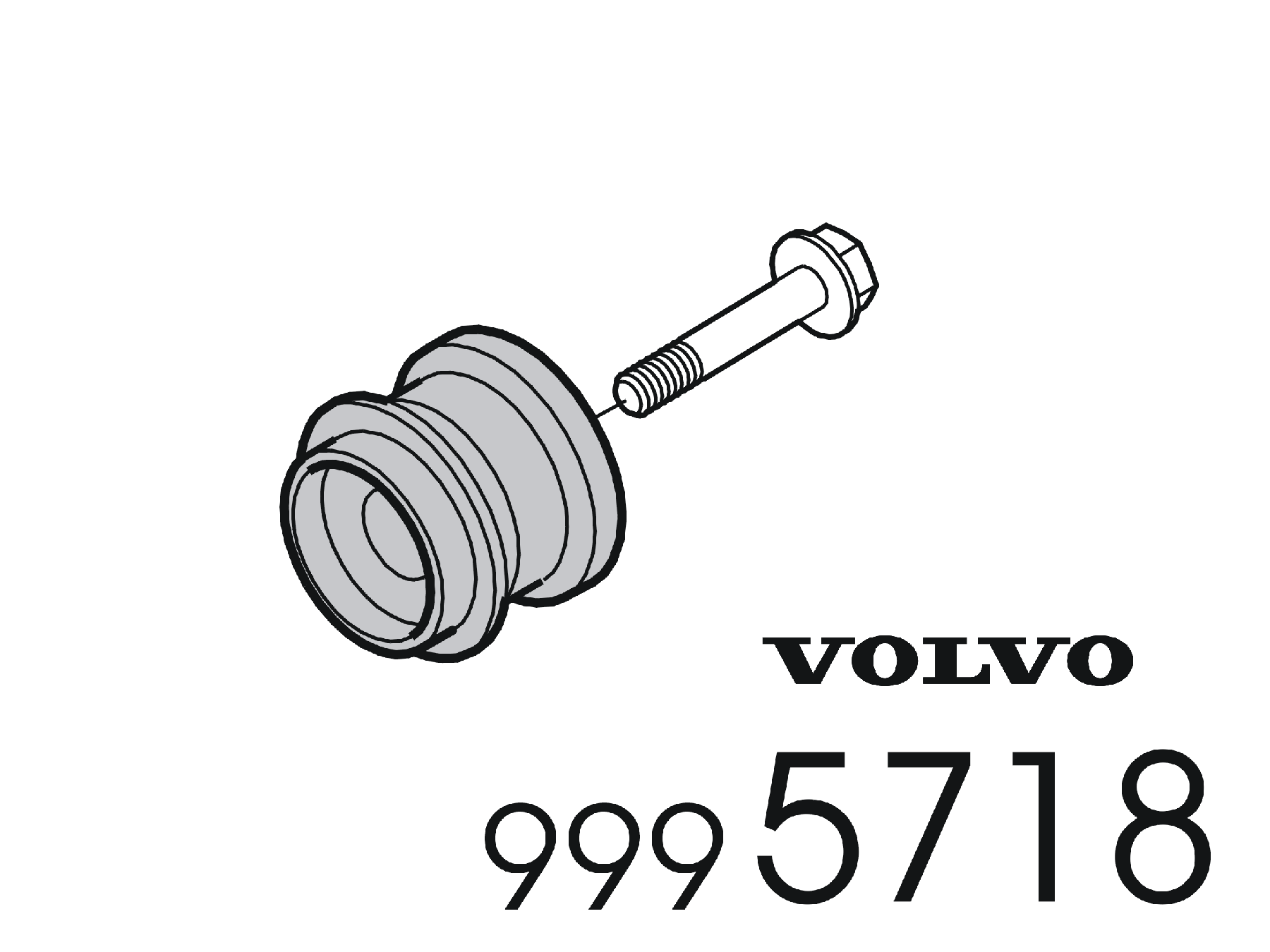

Use drift 9995718
Lubricate the surface of the seal that the camshaft rotates against.
Use the variable valve timing unit / timing belt pulley mounting screws. Tighten the screws until the drift bottoms out.
Remove the drift.
Install the screw holding the inner timing cover to the cylinder head.
