Installing the camshaft covers

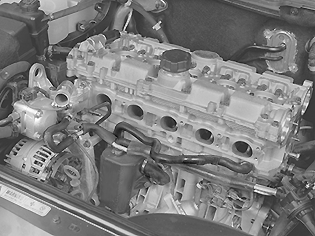

Fig 1: Identifying Camshaft Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the camshaft lobes, the camshaft bearing surfaces and the top of the valve lifters.

Install the camshaft cover.

Install press tool 9995454 (2x).

Tighten the camshaft cover screws alternately, keeping it parallel to the cylinder head using the press tools.

Install all the screws. Tighten the screws from the middle and outwards.

Remove the press tools.

Install

• the variable valve timing (VVT) solenoid. Use a new gasket
• the spark plugs. Tighten. See Summary of specific components and tightening torques .
