Separating the exhaust system

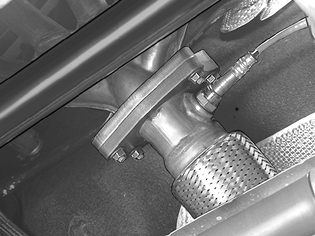

Fig 1: Identifying Heated Oxygen Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the heated oxygen sensor (HO2S) wiring from the rear engine mounting.

Remove the nuts where the manifold and the front exhaust pipe divide.

Disconnect the brake pipe from the holder on the SIPS member.

Remove the screws holding the SIPS member to the bodywork.

Press the exhaust system backward.
