Removing the camshaft cover and cylinder head

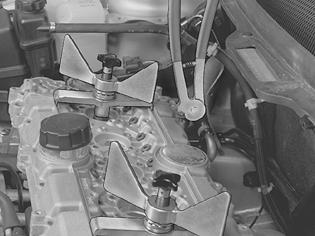

Fig 1: Identifying Special Tool 999 5454

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

Install 2 tools 9995454 . Leave a 2-3 mm gap to the camshaft cover.

Ensure that the screw in the spark plug well is fully tightened.

The screws holding the camshaft cover to the cylinder head.

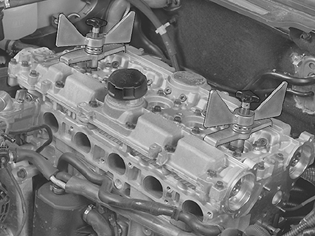

Fig 2: Identifying Pliers Installed At Stop Lugs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use pliers 9995670 to lift the cover from the cylinder head.

Install the pliers at the stop lugs.

Start with cylinder 1 and work alternately backward.

Slacken off the wing nuts approximately 2 turns. Repeat the procedure.

Fig 3: Identifying Camshaft Seal Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully press out the front and rear camshaft seals.

NOTE:

Be very careful so that the sealing faces on the camshafts are not damaged.

Fig 4: Identifying Valve Lifters Marked Positions

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

Lift out the valve lifters. Use a magnet or a suction cup.

NOTE:

Mark up and position the lifters so that their original positions can be established.

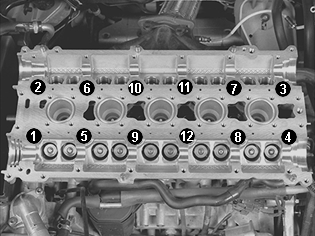

Fig 5: Identifying Cylinder Head Bolt Loosening Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws holding the cylinder head on the cylinder block. Start at the sides and work alternately towards the center.

Get help to lift off the cylinder head.

NOTE:

Work very carefully to avoid damaging the contact faces.
