Installing the oil pump

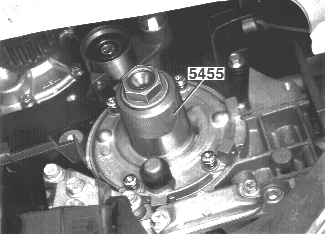

Fig 1: Identifying The Oil Pump Installation Using 999 5455

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

CAUTION:

Ensure that the sealing ring in the oil pump is not damaged during installation

Carefully insert the oil pump over the end of the crankshaft.

Install 4 x new screws as guides.

NOTE:

Ensure that the crankshaft does not rotate when drawing in the pump.

Pull in the oil pump with drift: 9995455 and the crankshaft center nut.

Tighten the screws alternately.

NOTE:

The timing gear pulley can only be in one position on the splines on the end of the crankshaft.

Install the crankshaft timing gear pulley.

Carefully tap alternately around the pulley until end position is reached.
