Lubricating And Oil System - Removal, Replacement And Installation
>>
Oil Pump And Line (B5244S; 2001-2006)
>>
Oil pump / crankshaft seal, front, replacing
>>
When only replacing the front crankshaft seal
When only replacing the front crankshaft seal

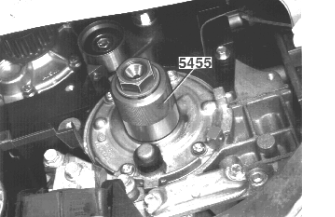

Fig 1: Identifying Seal Installation Using Tool 9995455
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the old seal. Use a groove-cut chisel or tool
9995919
Clean the mating surface
Grease and install a new seal.
Use tool
9995455
Press in the seal using a drift and the crankshaft center nut as illustrated.
NOTE:
Ensure that the crankshaft does not rotate when pressing in the crankshaft seal.
