Install the oil pump

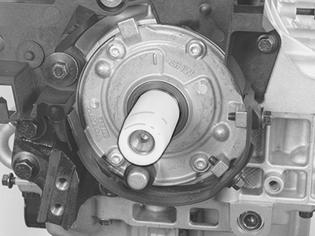

Fig 1: Identifying Oil Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install new oil pump

• Install a new gasket and a new O-ring around the pump housing
• Screw sliding sleeve 9995747 into place
• Carefully insert the oil pump over the end of the crankshaft.
  NOTE:

  Do not damage the sealing ring in the oil pump during installation.

• Carefully tap in the oil pump with a rubber mallet
• Tighten the screws crosswise. Tighten to 10 Nm
• Install the crankshaft timing gear pulley.

  Carefully tap alternately around the pulley until end position is reached.

  NOTE:

  The timing gear pulley can only be in one position on the splines on the end of the crankshaft.
