Installing heated oxygen sensors (HO2S)

Fig 1: Identifying Heated Oxygen Sensors
GLL101010Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the heated oxygen sensors (HO2S). Use tool 9995543 . Tighten to 45 Nm  .

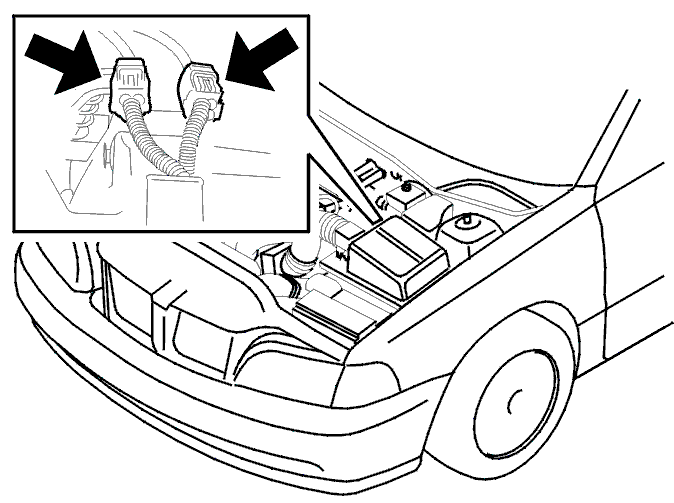

Fig 2: Identifying Oxygen Sensors Connectors
GLL101027Courtesy of VOLVO CARS OF NORTH AMERICA.

Reconnect connectors.

Secure wiring.

Install the hose between preheating and the air cleaner (ACL).
