Removing the Three-Way Catalytic Converter (TWC)

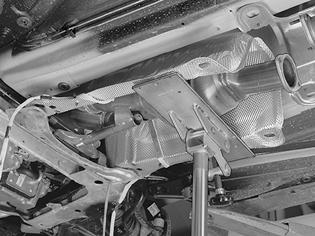

Fig 1: Mobile Jack With Universal Plate 999 5972 Positioned Under Catalytic Converter
GLL108929Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a mobile jack with universal plate 9995972 under the catalytic converter.

Remove the screws for the front SIPS member.

Pull back and lower the catalytic converters with their heat deflector plates.

NOTE: The routing of the heated oxygen sensor (HO2S) wiring over the brake pipe.
