Removing the Nuts For the Bevel Gear Flange

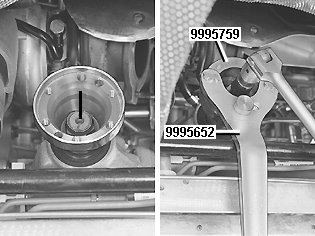

Fig 1: Removing/Installing Bevel Gear Flange Nuts
GLL109849Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the position of the flange and nut in relation to the pinion shaft end.

Remove the nut. Use counterhold 9995652 with adapter 9995759 .
